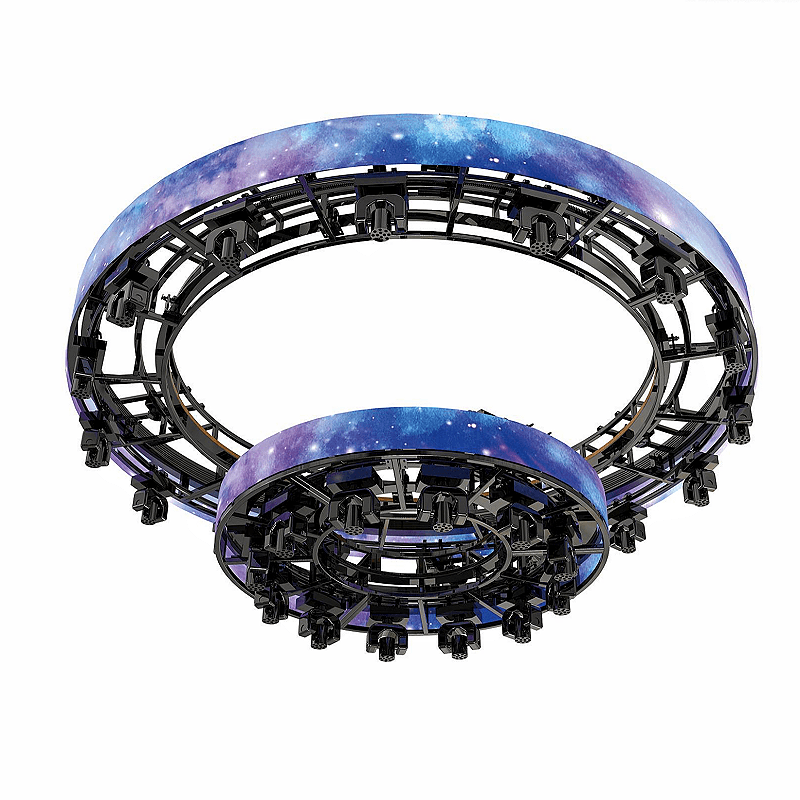

The Motorized Rotating Lighting Truss is a kinetic stage-machinery system designed for suspension in the central ceiling zone of nightclubs, bars, and live-entertainment venues.
Driven by an absolute-value servo motor with a worm-gear reducer, it delivers smooth, variable-speed rotation from 0 to 3 r/min ( linear speed ≤1 m/s) with self-locking load retention under power loss.

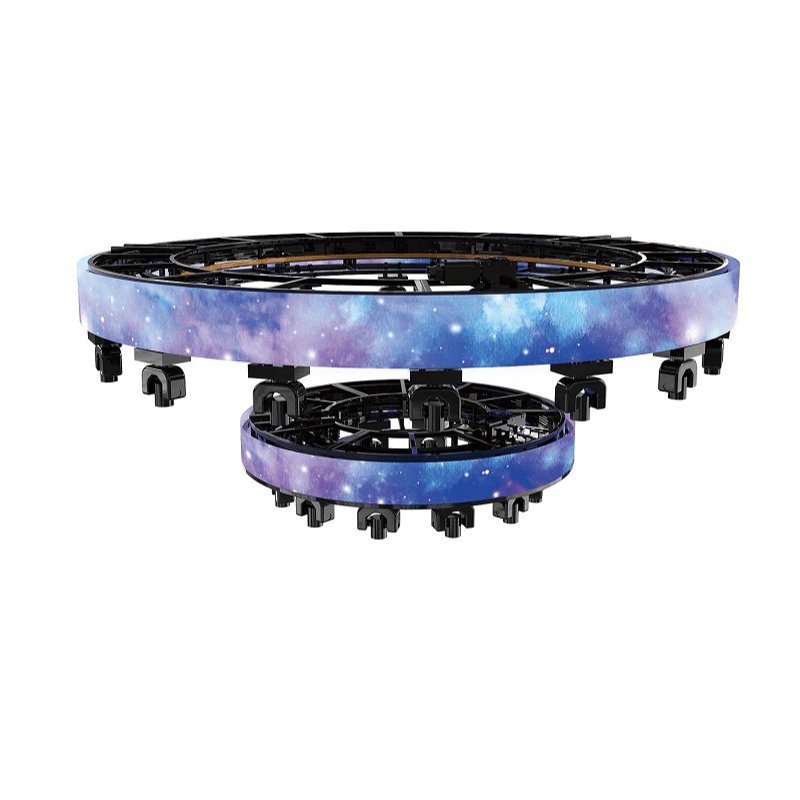

Rated at 200 kg SWL (custom capacities available), the truss integrates an LED display panel on its outer fascia and dedicated mounting positions on the lower chord for moving-head fixtures — producing a synchronised aerial light-and-visual centrepiece that defines the atmosphere of any high-energy venue.
Key Features
|
Drive |
Absolute-value servo motor + worm-gear reducer |
|
Load Capacity |
200 kg SWL standard; custom capacities on request |
|
Rotation Speed |
0 – 3 r/min |
|
Linear Speed |
≤1 m/s |
|
Control Interface |
DMX512 / EtherCAT; compatible with mainstream lighting consoles and stage automation controllers |
|
LED Display |
Outer fascia fitted with LED display modules for 360° aerial visual content |
|
Safety |
Worm-gear self-locking under power loss; absolute-value encoder retains position on restart — no homing required |
|
Suspension |
Compatible with electric chain hoists for variable trim height |
|
Applications |

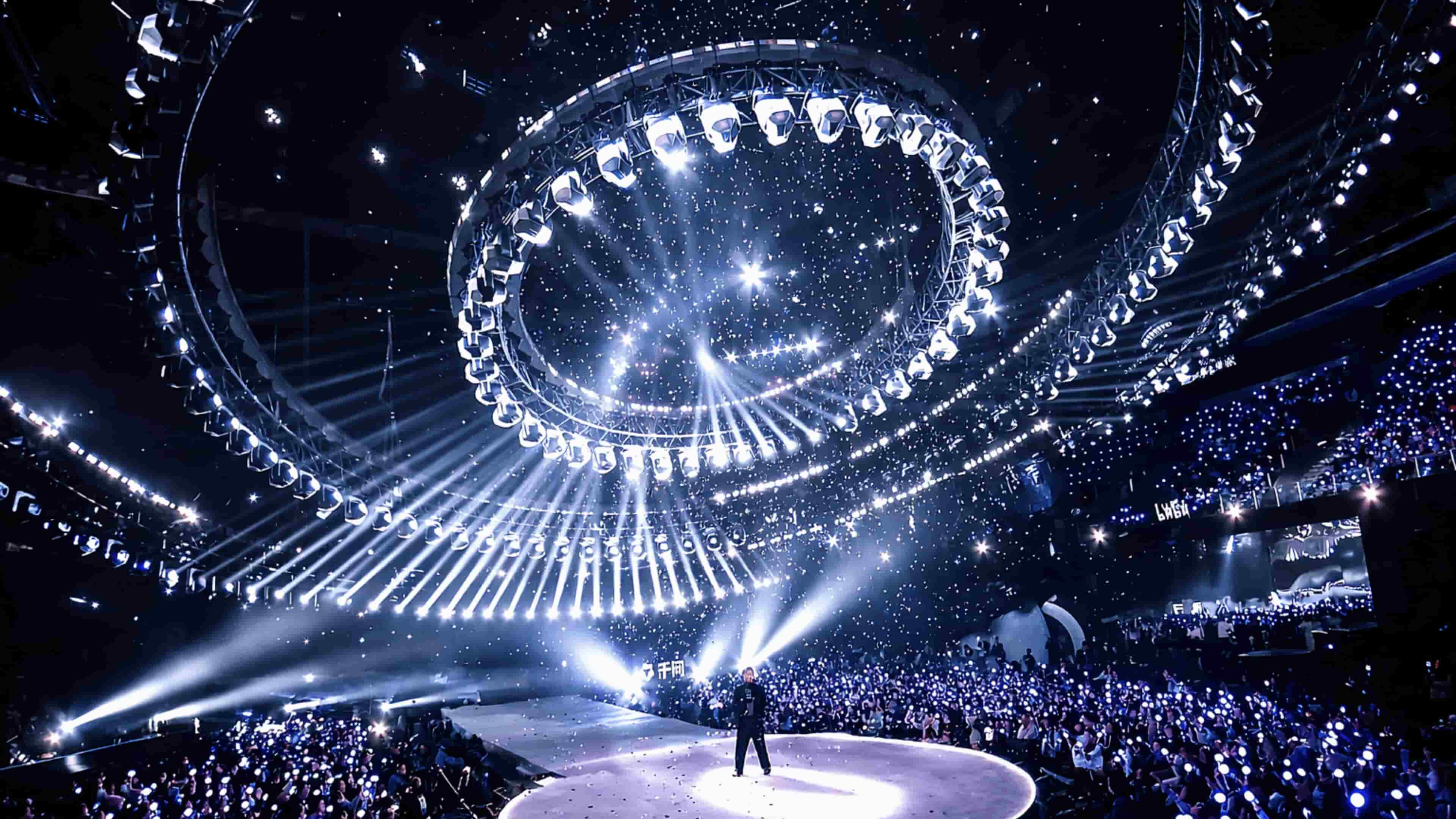

Live Event·Product launch·Nightclub & bar · Concert & festival · Theme park · TV studio |
|
Customisation |
SWL, speed range, LED spec, turnkey service available |
The Motorized Rotating Lighting Truss is a kinetic stage-machinery system designed for suspension in the central ceiling zone of nightclubs, bars, and live-entertainment venues. Driven by an absolute-value servo motor with a worm-gear reducer, it delivers smooth, variable-speed rotation from 0 to 3 r/min ( linear speed ≤1 m/s) with self-locking load retention under power loss.
