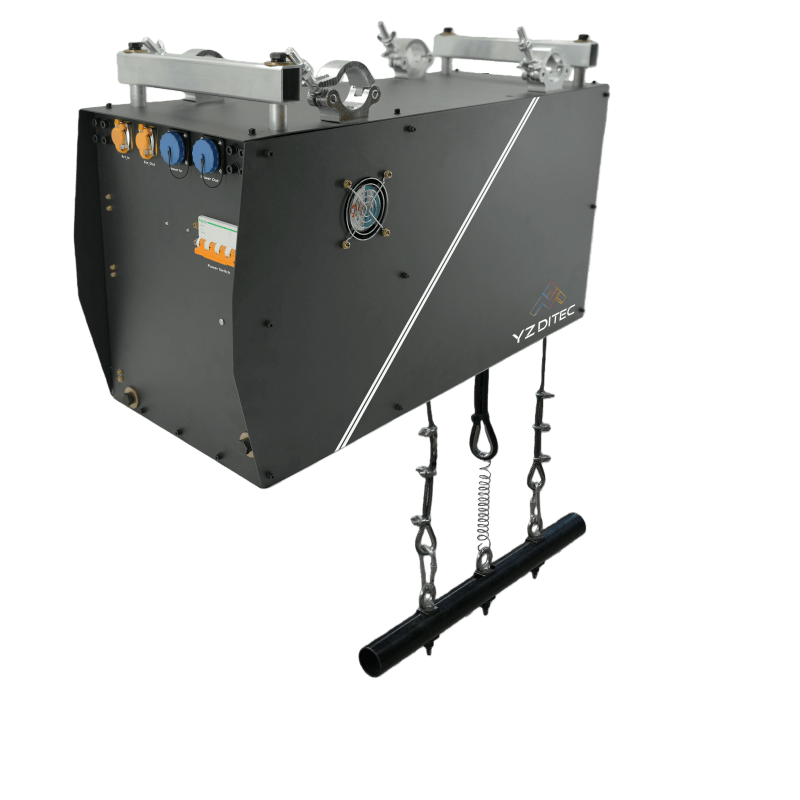

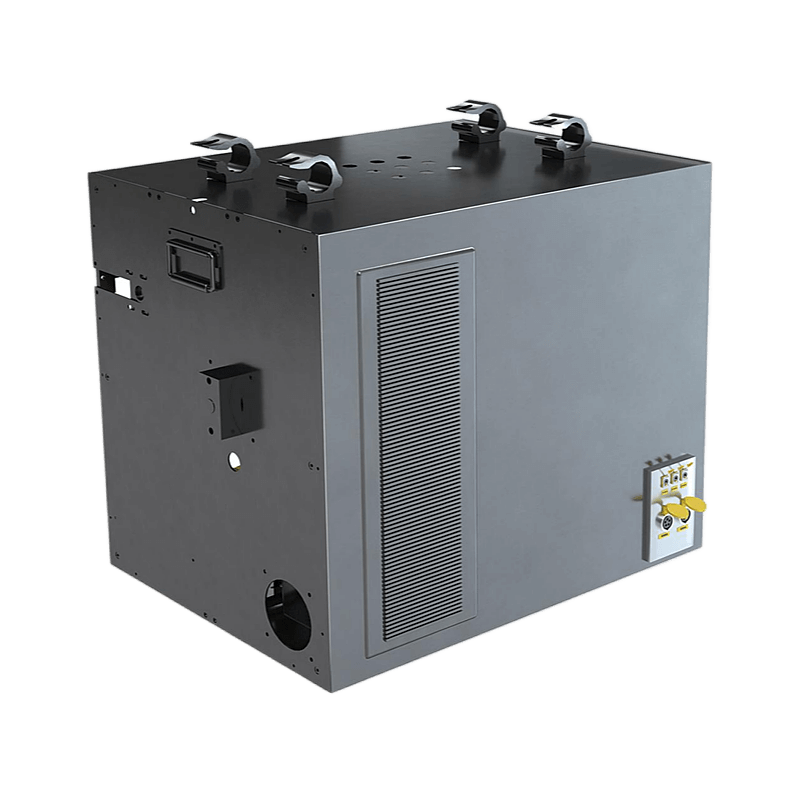

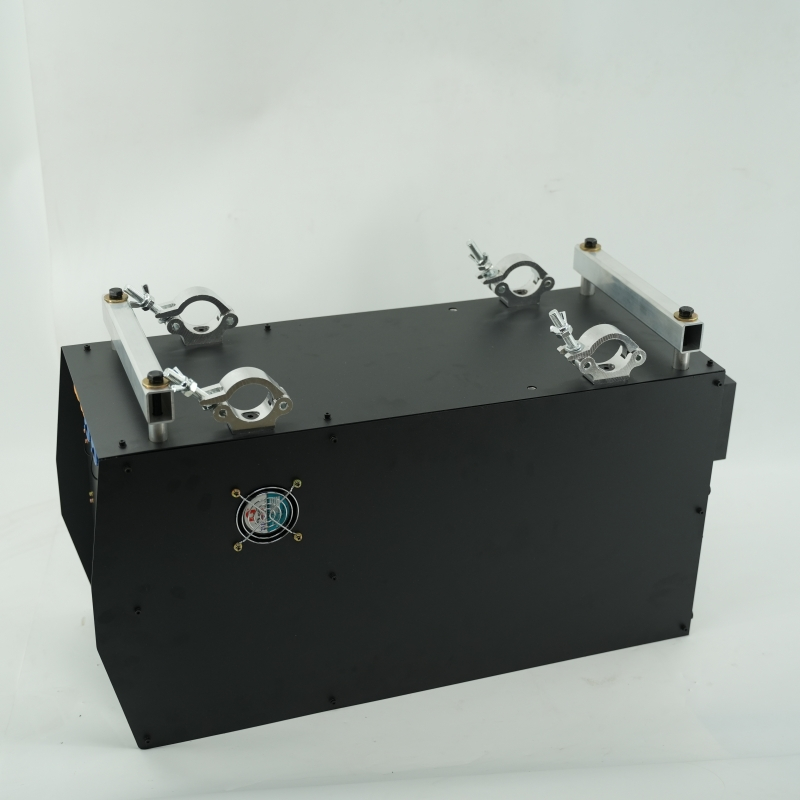

In live production, speed defines the art. Our 50kg stage winch delivers 0.65 m/s lifting speed over an 8 m stroke — light, swift, and precisely repeatable for luminaires, LED screens, and suspended scenic equipment.
Speed & Precision
Closed-loop EtherCAT control with ring-topology redundancy achieves < 1 mm synchronization error, enabling frame-accurate multi-axis choreography at scale.
Safety, Layered
Dual mechanical brakes · forced self-locking · dynamic torque slack-rope monitoring · load detection · emergency brake — independent redundant protection at every level.
Integrated. Simplified.
Composite cable unifies power and control in a single run with a high structural safety margin.
Faster. Lighter. Stronger.
Fully compatible with our intelligent stage control system — up to 256 axes synchronized via EtherCAT, enabling kinetic motion timed to lighting cues across concerts, touring productions, and large-scale live events.
Specifications
⚙️ Performance
| Parameter | Value |
|---|---|
| Rated Load (per unit) | 50 kg |
| Maximum Speed | 0.65 m/s |
| Rated Stroke | 8 m/15m |
| Synchronization Error | < 1 mm |
🔌 Electrical & Power
| Parameter | Value |
|---|---|
| Supply Voltage | AC 380 V ±15%, 50–60 Hz |
| Total Power Consumption | 850 W (excluding direct output) |
| Output | 220 V / 1,300 W + RJ45 Network |
| Ingress Protection | IP20 |
| Operating Temperature | 0 °C to 55 °C |
| Electrical Components | Industrial-grade |
📡 Control & Communication
| Parameter | Value |
|---|---|
| Control Method | Closed-loop control |
| Communication Protocol | EtherCAT high-speed bus (ring-topology redundancy) |
| Multi-Point Synchronization | Supported |
| Control Interface | NW-JSP-F (I/O) |
| Pass-Through Connector | SD13, 5-pin |
| External Control Pass-Through | Switched by mating plug |
🛡️ Safety
| Parameter | Value |
|---|---|
| Braking System | Dual mechanical brakes + electronic protection + forced self-locking |
| Emergency Brake | Standard |
| Slack-Rope Detection | Dynamic torque monitoring |
| Load / Weight Detection | Standard |
🔩 Mechanical & Rigging
| Parameter | Value |
|---|---|
| Load-Bearing Wire Ropes | 2 × Ø6 mm (single-rope breaking strength ≥ 21 kN) |
| Secondary Safety Wire Rope | Ø4 mm × 1,000 mm × 1 pc |
| Suspension Hook (for fixtures) | T30 × H100 × W130 mm × 4 pcs |
| Mounting Method | Vertical suspension |
📦 Physical & Packaging
| Parameter | Value |
|---|---|
| Enclosure Dimensions (L × W × H) | 900 × 320 × 475 mm |
| Net Weight (per unit) | 63 kg |
| Packaging | Carton or flight case |
🔗 Included Cables & Accessories
| Item | Specification |
|---|---|
| Signal Interconnection Cable | 8 × 0.2 mm², 1.5 m × 1 pc |
| Power Interconnection Cable | 5 × 2.5 mm², 1.5 m × 1 pc |
| Powerable Pass-Through Cable | 4 × 2 × 0.2 mm² + 3 × 0.75 mm² |
범주사양브레이크 시스템듀얼 전자기 브레이크(중복 백업)모터AC 절대 엔코더 서보 모터제어 시스템BW-콘솔 및 메인 컨트롤러로프 시스템12:1 안전율 강철 케이블 + 꼬임 방지 장치설치표준 트러스(이동식 및 영구식)와 호환 가능부하 모니터링통합 로드 셀(GB/T 36731-2018 준수)
세부
In live production, speed defines the art. Our 50kg stage winch delivers 0.65 m/s lifting speed over an 8 m stroke — light, swift, and precisely repeatable for luminaires, LED screens, and suspended scenic equipment. Speed & Precision Closed-loop EtherCAT control with ring-topology redundancy achieves < 1 mm synchronization error, enabling frame-accurate multi-axis choreography at scale. Safety, Layered Dual mechanical brakes · forced self-locking · dynamic torque slack-rope monitoring · load detection · emergency brake — independent redundant protection at every level. Integrated. Simplified. Composite cable unifies power and control in a single run with a high structural safety margin. Faster. Lighter. Stronger. Fully compatible with our intelligent stage control system — up to 256 axes synchronized via EtherCAT, enabling kinetic motion timed to lighting cues across concerts, touring productions, and large-scale live events.
세부
까다로운 환경을 위한 정밀 모션 제어주요 특징1. 고성능 서보 드라이브초정밀 위치 지정 (±1mm 정확도)부드러운 속도 제어 (0.01~0.27m/s 조정 가능)즉각적인 토크 반응 무거운 짐을 다루는 데 적합2. 지능형 곡선 제어적응형 가속/감속진자 하중에 대한 반진동 알고리즘4. 다양한 응용 분야클럽 설치: 야간 장소의 조용한 작동쇼핑몰: 24시간 모니터링으로 공공장소 안전 보장무대 기계:비행 공연자(최대 1000kg)다이나믹한 세트 동작
세부
무대 공연을 위한 전문가급 비행 시스템시스템 개요전문 연극 및 라이브 이벤트를 위해 설계된 고정밀 공중 퍼포먼스 시스템입니다. 부드러운 수직 리프팅과 수평 이동을 결합하여 역동적인 무대 효과를 구현합니다.
세부
Precision-engineered for dynamic stage rigging. Powered by a 750 W servo motor with absolute encoder and SKM028B hypoid gearbox, it delivers a maximum vertical speed of 1.17 m/s with exceptional positioning repeatability.
세부

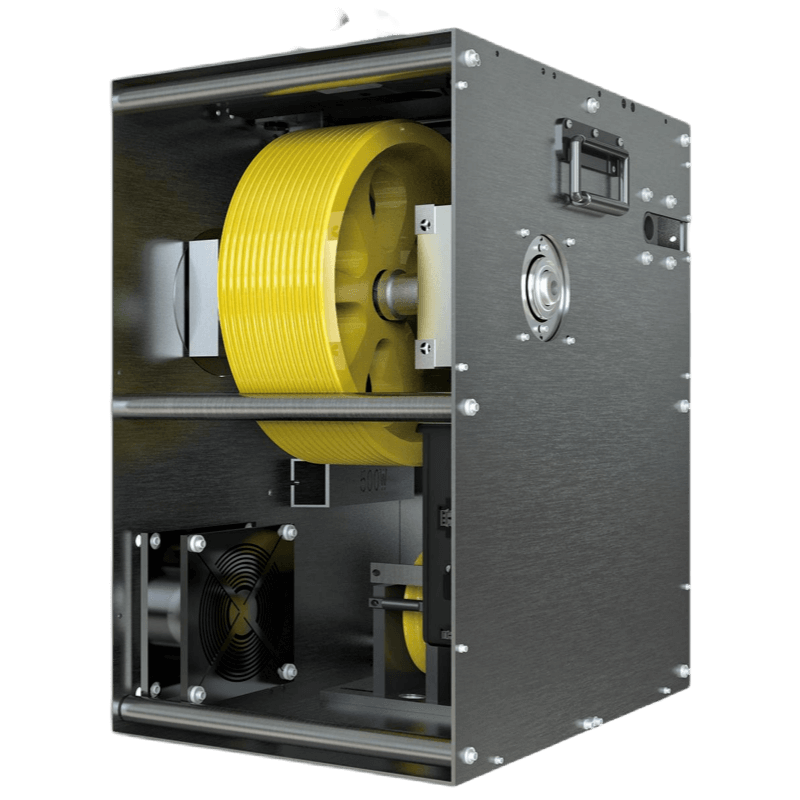

Precision-engineered for lightweight scenic rigging. Powered by an 850 W servo motor with absolute encoder and RV075 worm gearbox, it delivers a maximum vertical speed of 0.78 m/s with reliable, repeatable vertical positioning for demanding production environments.
세부

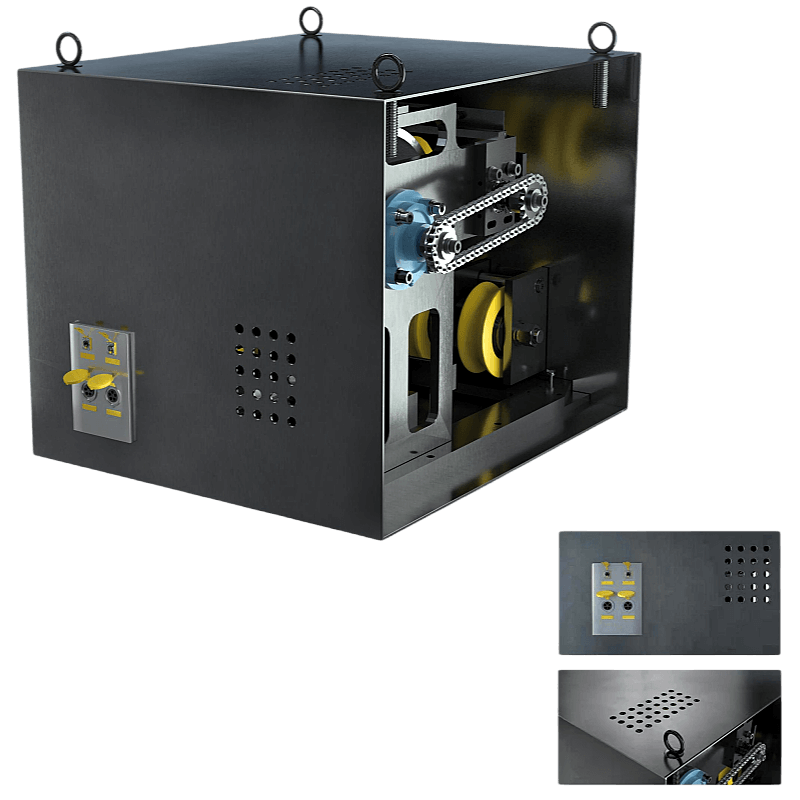

500 kg intelligent stage lifting winch — precision, power, and perfect synchrony for live entertainment. Driven by an absolute-encoder AC servo motor with worm-gear reducer, this winch delivers a SWL of 500 kg across three selectable speed ratings — 0.27, 0.35, and 0.42 m/s — with motion modes ranging from synchronised level lift/lower to differential multi-point tilt, giving automation teams precise spatial orientation control over scenic elements and LED screens in concerts, theatrical productions, and touring shows.
세부
